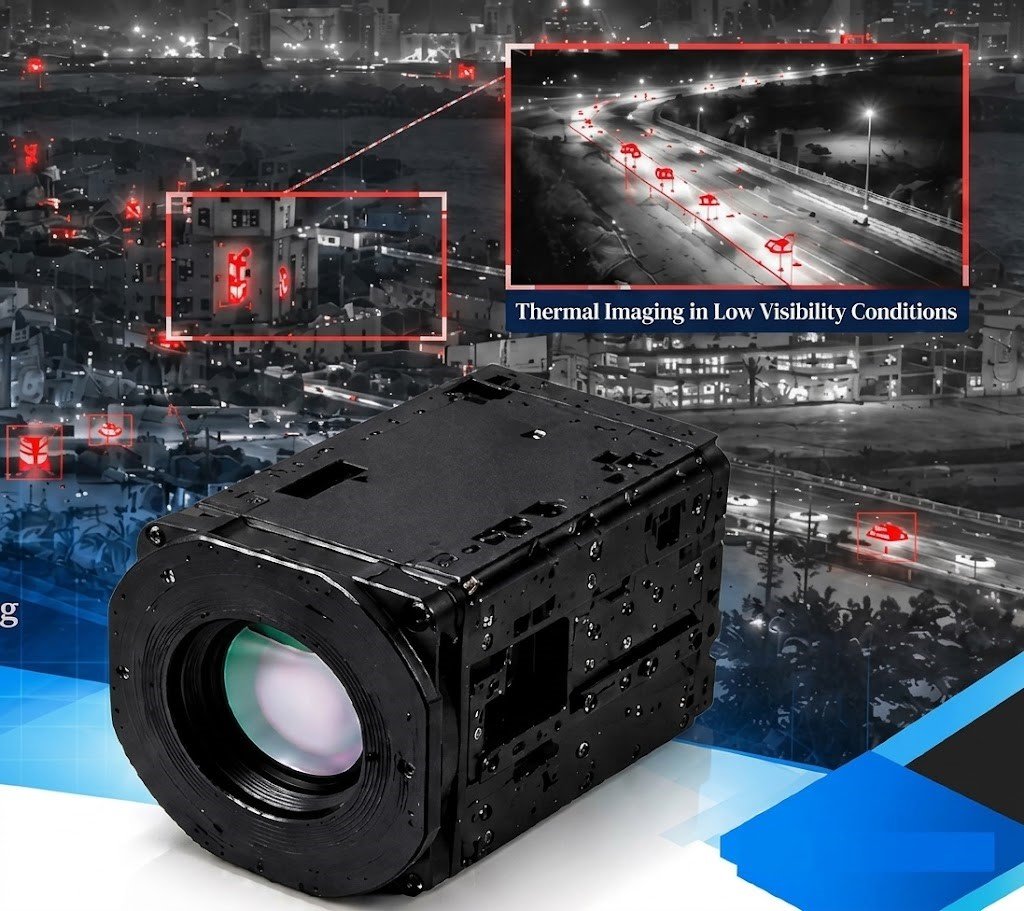

10X Zoom Thermal Module (OTL- HP TC121023)

Product Overview

The OTL- HP TC121023 10X Zoom Thermal Module is developed based on the latest uncooled infrared technology and infrared optical technology. It adopts advanced digital circuit and image-processing algorithms. The thermal camera is capable of penetrating dust, fog, rain, and darkness. With wide power input, easy connection and operation, it ensures convenient control and reliable performance.

The uncooled network thermal imaging module integrates a $1280 \times 1024$ vanadium oxide detector with $12\mu\text{m}$ pixel pitch, capable of detecting infrared radiation in the $8\sim14\mu\text{m}$ band. It provides high-definition thermal imaging, network output, and can be widely used in remote observation, fire prevention, security, key area protection, police law enforcement, scientific research and other civil applications

Product’s Highlights:

► NETD 45mk enhances the imaging details even in foggy/rainy/snowy weather.

► SDK and ONVIF protocol for customer development

► Function of life index recording for thermal camera

► WZ Non-uniform image correction technology, good image uniformity and dynamic range.

► SDE digital image processing, no image noise, 16 pseudo-color images
