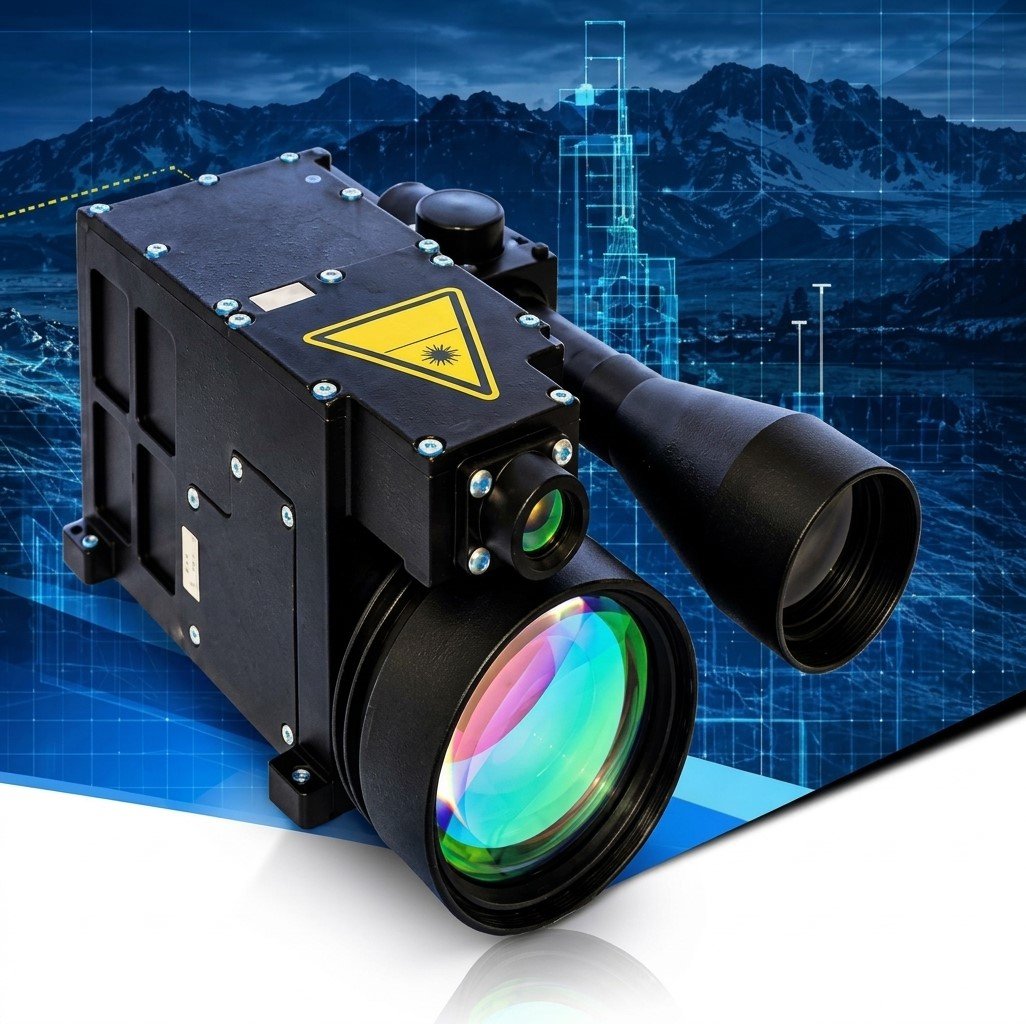

Laser Rangefinder (OTL – JDIIV7)

Product Overview The OTL – JDIIV7 laser rangefinder is a critical component of the integrated photoelectric reconnaissance and surveillance system; it can be deployed alongside the system for all-weather operation to acquire distance data regarding targets. PRODUCT COMPOSITION

• A laser
• A laser transmitting antenna
• A laser receiving antenna
• A signal acquisition and processing system
• A control unit
• An interface circuit

KEY FEATURES

• Laser wavelength: 1535 nm
• Maximum range: ≥ 30 km
• Minimum measurement range: ≤ 100 m
• Range measurement accuracy: better than 2 m
• Accuracy: ≥ 98%
• Maximum operating frequency: 5 Hz
